Overview
3D Synthetic Generation tools can help generate different image viewpoints, object poses, backgrounds, and lighting conditions from a CAD file to create additional data to train custom models.
System Features
Object Detection Model
Datasets
Image Generation
Background Themes
Guide to using 3D Synthetic Data

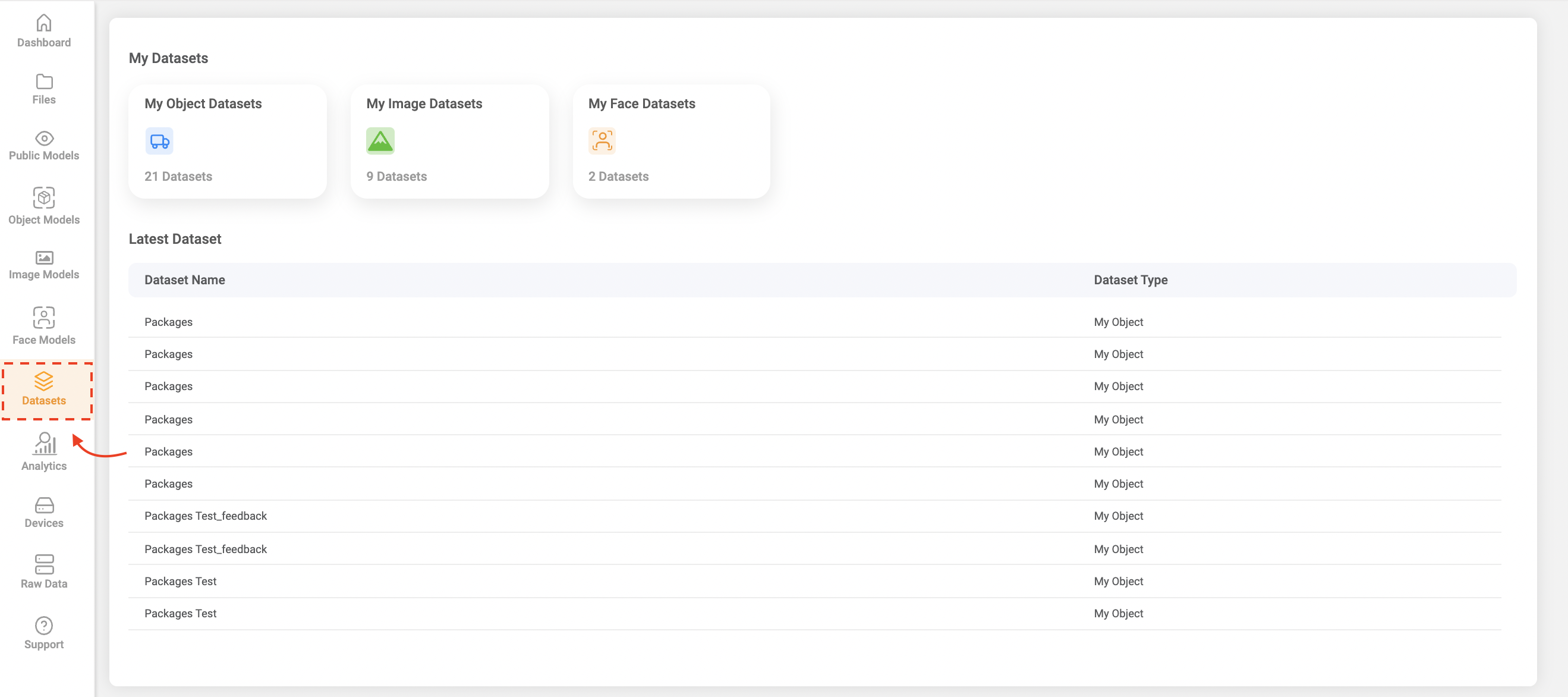

Navigate to the Chooch dashboard

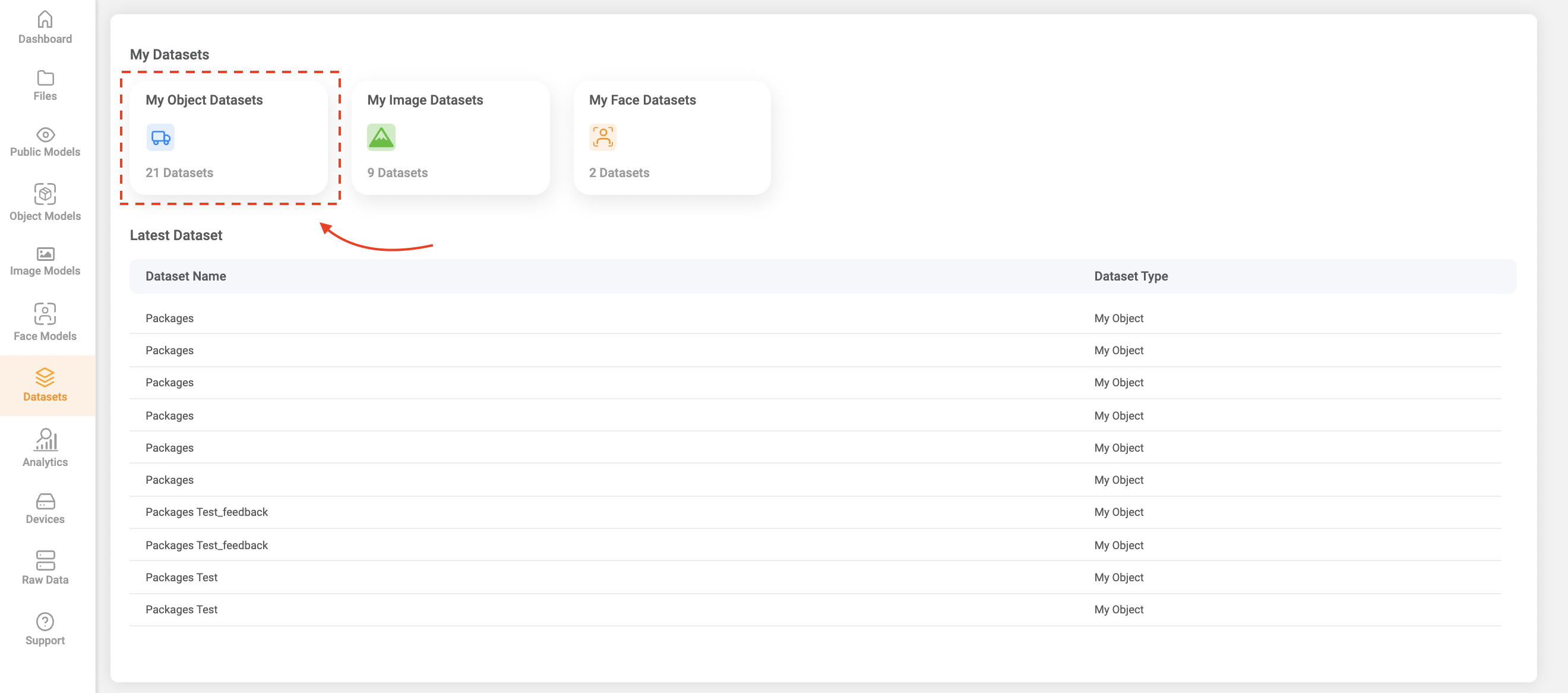

On the left-hand side panel select Datasets > My Object Datasets
Select your pre-existing Object Dataset, if you do not have a dataset please see here to learn how to create one. Please note: you must have annotated images in your dataset, non annotated images cannot be generated

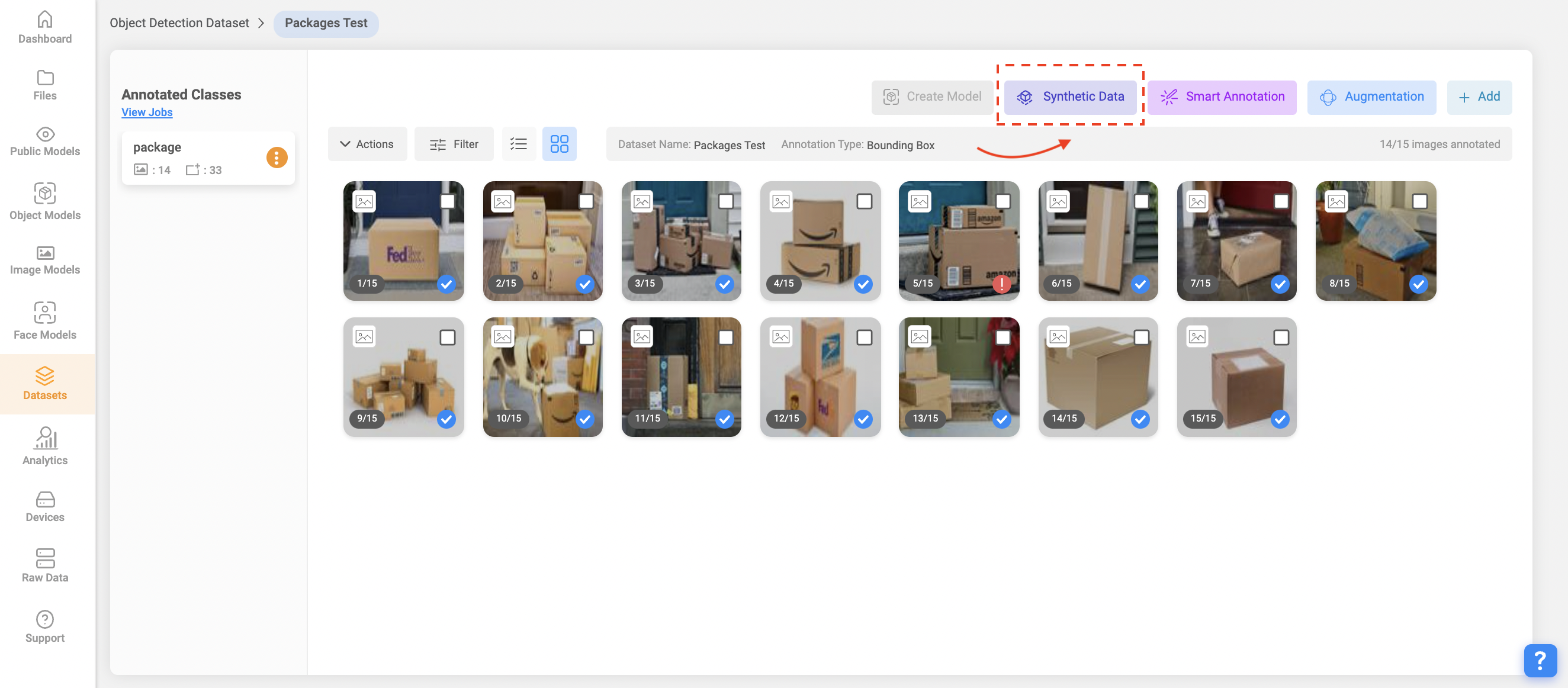

Select Synthetic Data if the tool is not available please contact support@chooch.ai to upgrade to Enterprise

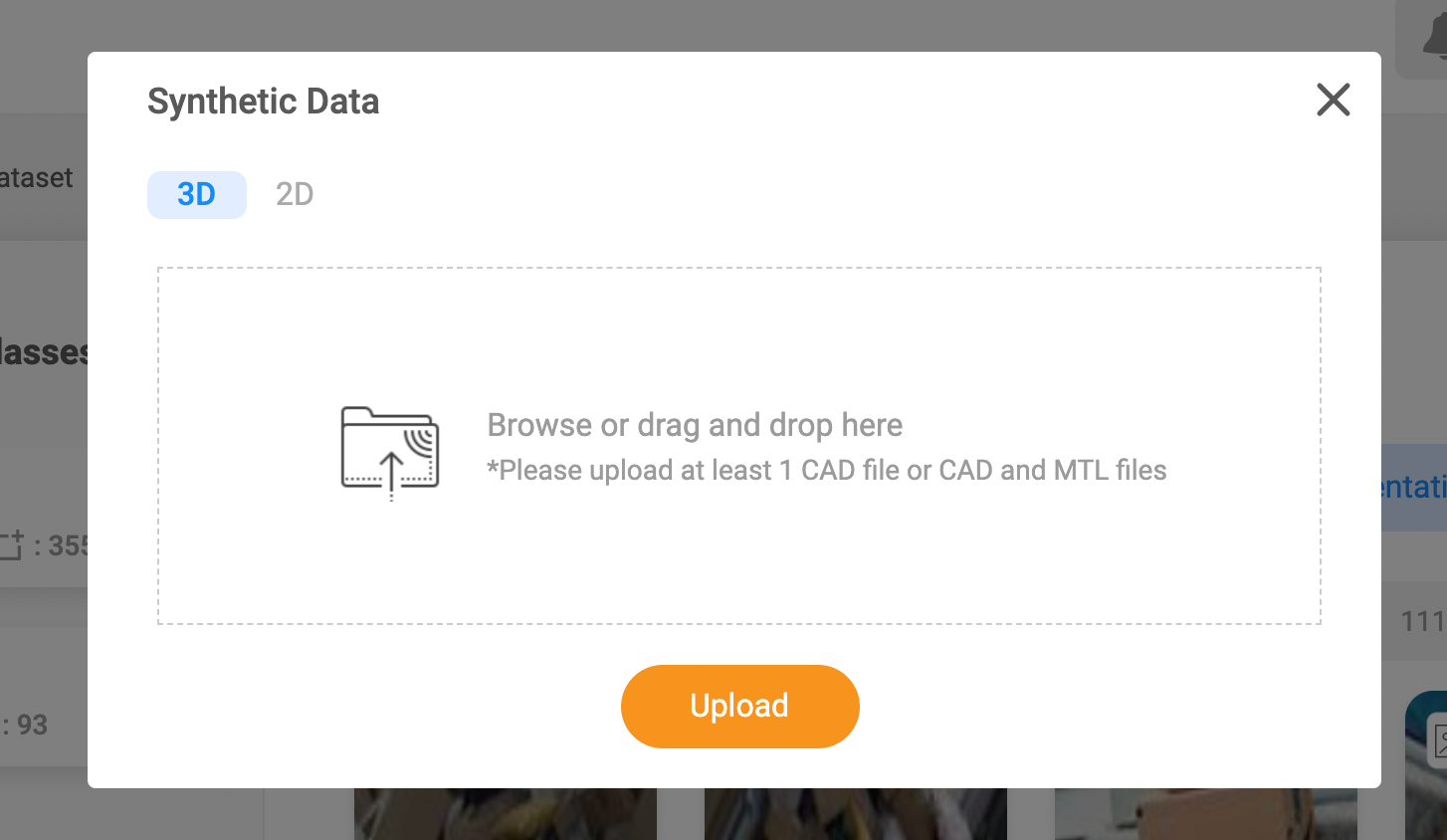

Select Synthetic Data 3D and upload at least 1 CAD file

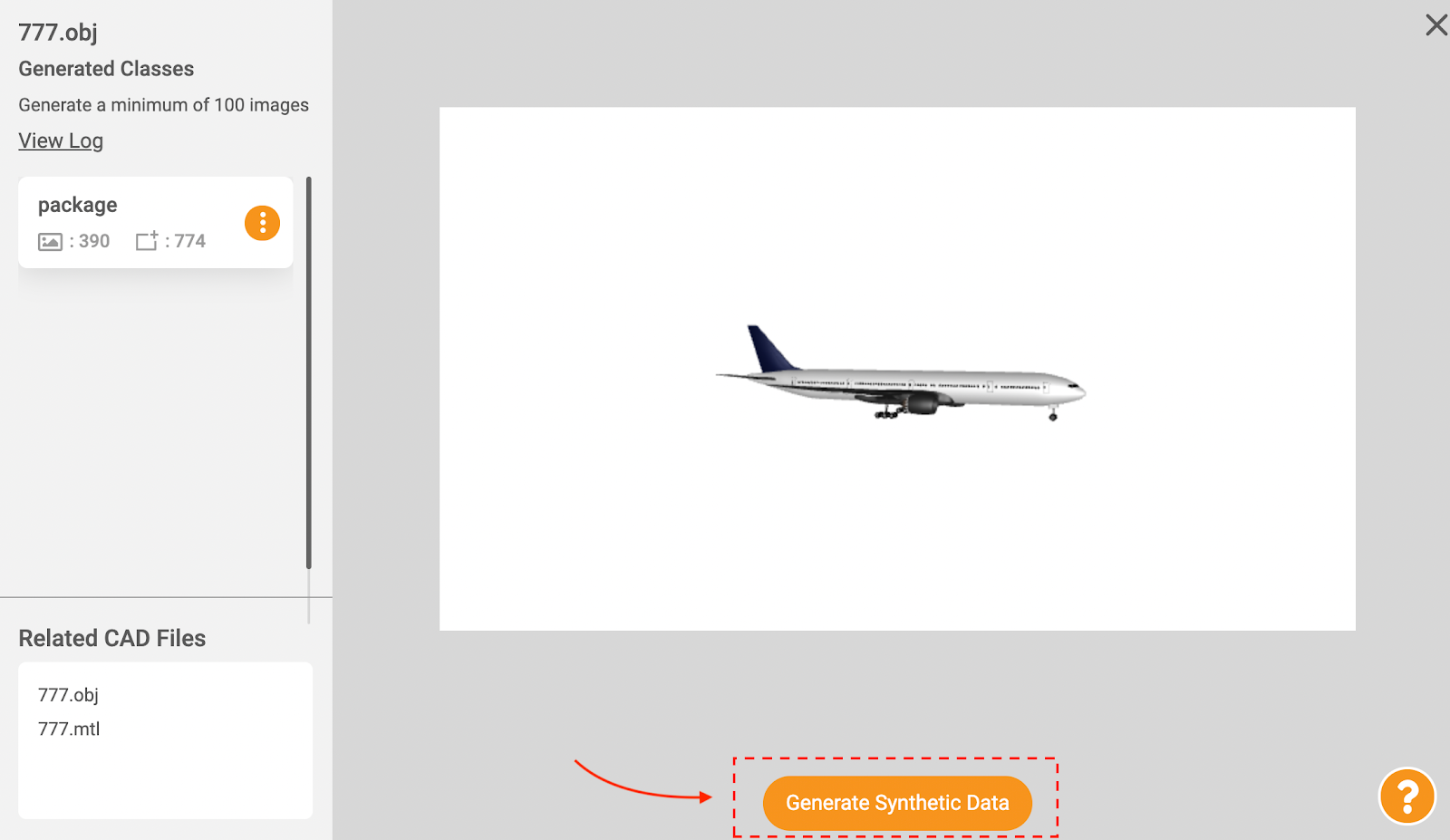

Select Generate Synthetic Data

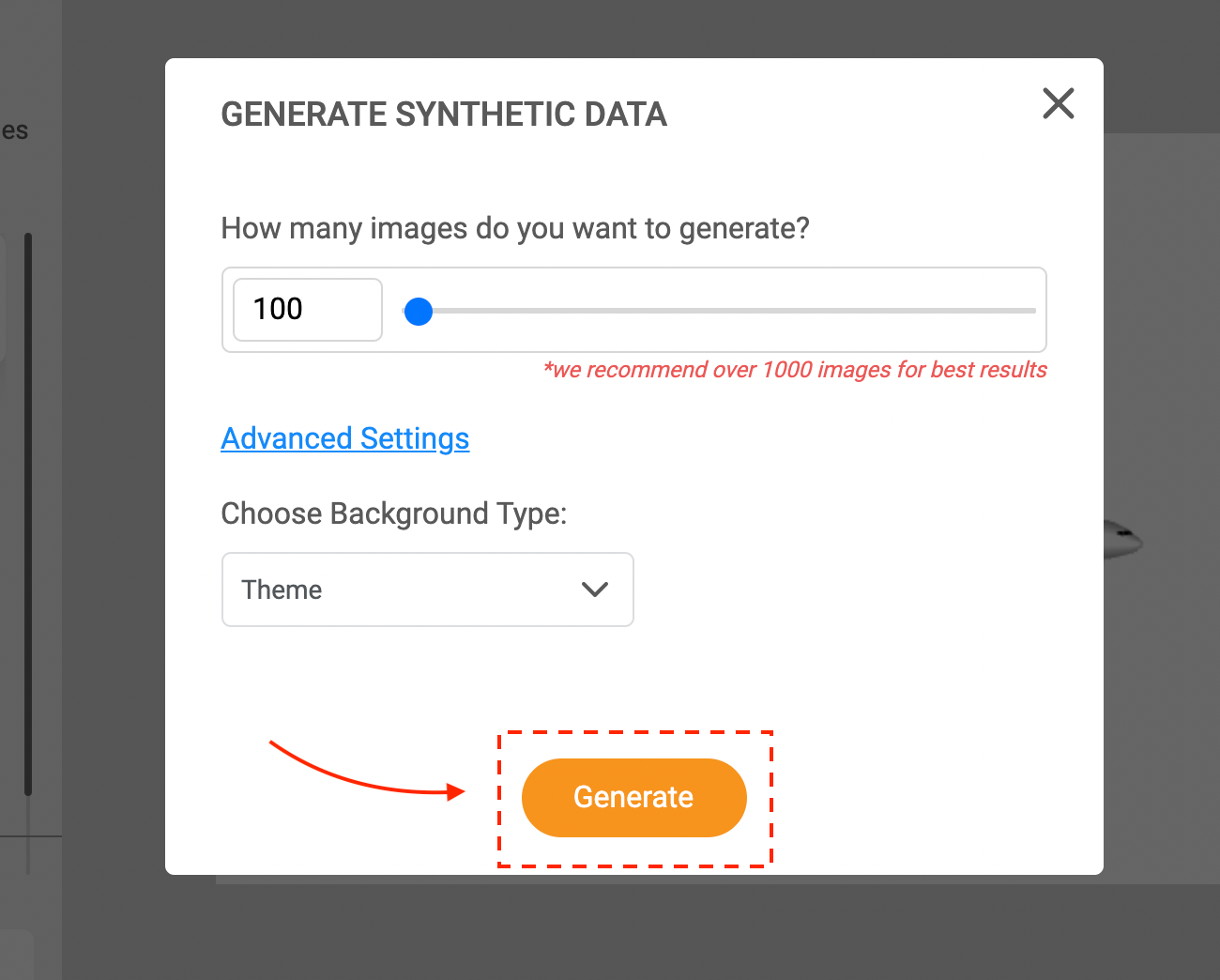

Select number of images to generate and the Background Type > Select Generate to begin 3D Synthetic Data

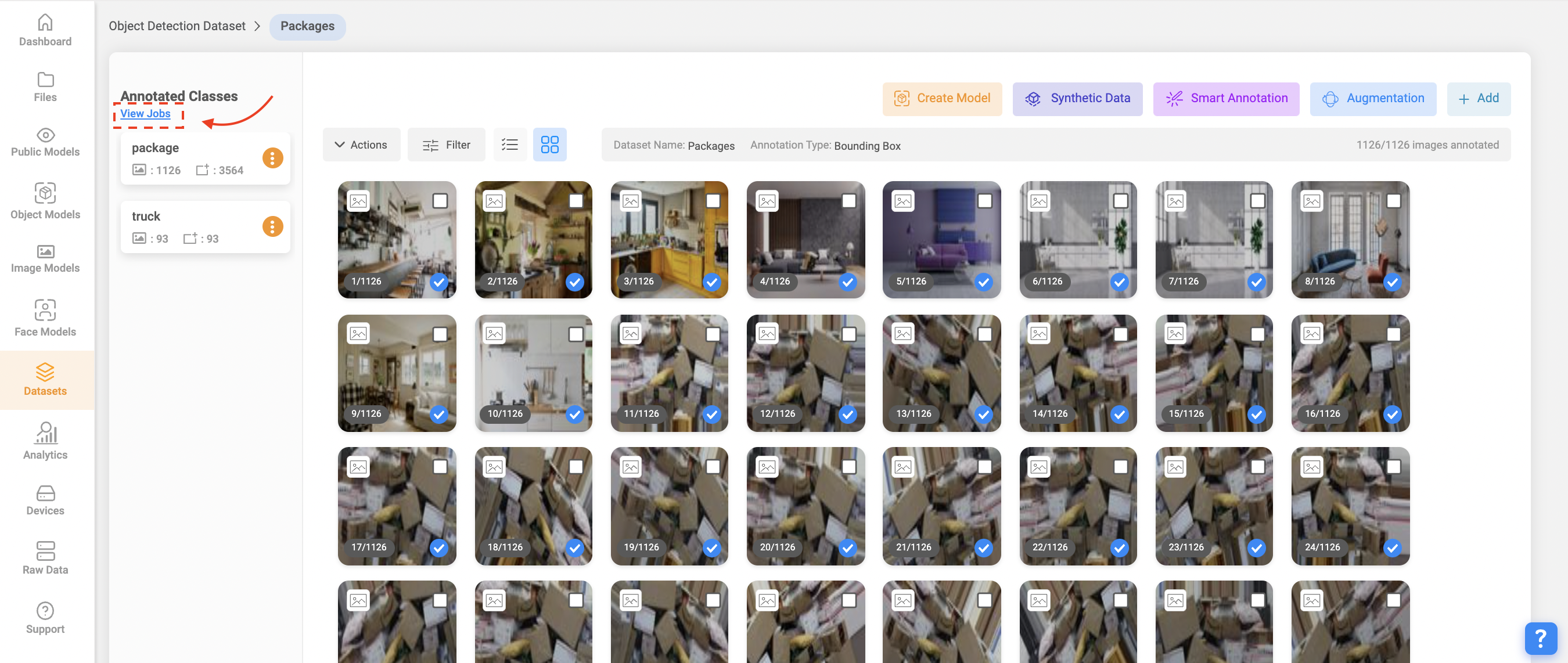

Select View Jobs to check the status

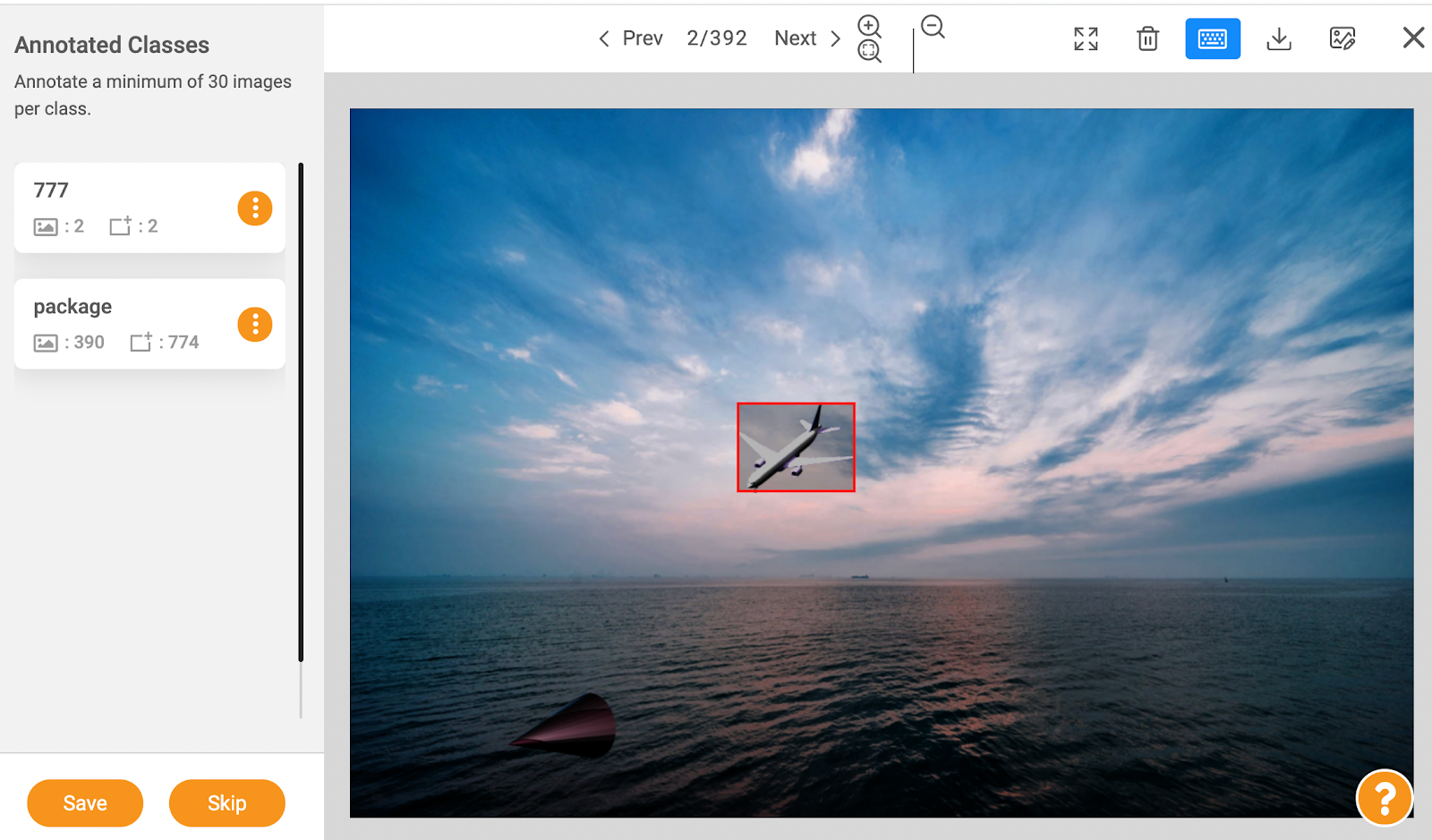

Once the job is completed Refresh the page and check the results
Check out our video here!
For any questions, please reach out to support@chooch.ai or learn more here Synthetic Data Webinar: To build accurate computer vision models, you need data—and lots of it. Now, you can generate images with synthetic data and augmented data on the Chooch AI platform, and then use these synthetic images to train and deploy computer vision models.
